Home /Products/Fish Pellet Making Machine/Animal Feed Pellet Production Line Animal Feed Pellet Machine Agriculture Fish Cow Rabbit Goat Chicken Sheep Machinery Feed Processing Machinery

Animal Feed Pellet Production Line Animal Feed Pellet Machine Agriculture Fish Cow Rabbit Goat Chicken Sheep Machinery Feed Processing Machinery

1.0 Sets
MOQ
Animal Feed Pellet Production Line Animal Feed Pellet Machine Agriculture Fish Cow Rabbit Goat Chicken Sheep Machinery Feed Processing Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Farms, Pet Food Processing Machines, Animal Feed Pellet Making Machine, Floating Fish Feed Extruder
Showroom Location: Egypt, Kenya, UAE, Nigeria
Condition: New
Place Of Origin: Henan, China
Brand Name: HEXIE
Type: Feed Pellet Machine
Voltage: 380v, 50hz, 3phase
Dimension(L*W*H): 1.36*1.67*0.85m
Weight: 490 Kg
Warranty: 2 Years
Key Selling Points: Accurate Temperature Control
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Other, PLC, Gearbox, Motor, Engine, Pressure Vessel, Pump
Max. Capacity: 200-250 Kg/h
Product Name: Fish Feed Production Line Extruded Mill
Application: Animal Feed Pellet Production Line
Function: Poultry Chicken Feed Manufacturing Machine
Output:: 200-250KG/H
Screw Diameter: 70mm
Cutting Power+Feeding Power: 0.4kw+0.4kw
Make Feed For: Pet Food, Fish, Poultry Animal Etc
Supplier Type: Manufacturer
Installation: Offer Manual Book And Engineer's Guidance
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Kenya, Nigeria
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
Certification: CE, ISO, BV
Basic Infomation
Place of Origin: Henan, China
Brand Name: HEXIE
Certification: CE, ISO, BV
Payment & Shipping Terms
Packaging Details: Standard wooden case:Internal plastic wrap External wooden box
Supply Ability: 200 Set/Sets per Month
Product Description

Animal Pet Dog Cat fish Shrimp Food Making Extruder Floating Fish Feed Pellet Mill Machine


Super Quality Floating Fish Feed Pellet Machine Small Feed Pellet Machine for sale China professional Animal Feed Pet food Aqua Fish Machine Manufacturer
Product Description

HEXIE Floating Fish Feed Pellet Machine

This Floating Fish Feed Pellet Machine is suitable for making floating fish feed and other pet food with different shapes by changing different molds. The main material for making fish feed is maize powder and wheat flour. And we also can offer the whole line for making fish feed. It mainly consists the following parts:raw material-crusher-mixer-extruder-dryer or cooler(dryer has better effects, if you want to save cost, had better choose dryer)-flavoring parts(selectable)-packer.
Features of HEXIE Floating Fish Feed Pellet Mill Machine
1). The fish feed pellets can float on water for over 20 hours.And sinking and floating aqua-feed pellets both can be made just by adjusting the feed formulation. 2). Pellet diameter is 0.9mm-15mm by changing the mold. 3).The cutter can cutting the pellets into different length. 4)The feeding speed,cutting speed,temperature all can be adjusted. 5).The machine also can make feed for pet like dog,cat with different shapes

HEXIE Animal Feed Pellet Machine

Generally, There are two different designs of pelletizer, with two key differences. One design of feed pelletizer have a rotating die with a mounted roller shaft, and others have a mounted die with a rotating roller shaft. The second design is becoming more and more popular for larger fertilizer pelletizer. In general however due to their simple design and lighter weight, flat die pelletizer are normally used in small scale pellet production.

Features of HEXIE Animal Feed Pellet Machine

1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet machine

5. Be able to change new die and rollers faster to save time to produce pellets.
6. Small and light weight, which can be used in home,small farm,and light industrial.
7. Visibility to viewing the material during pelleting is the best way to fix problems.
Details Images

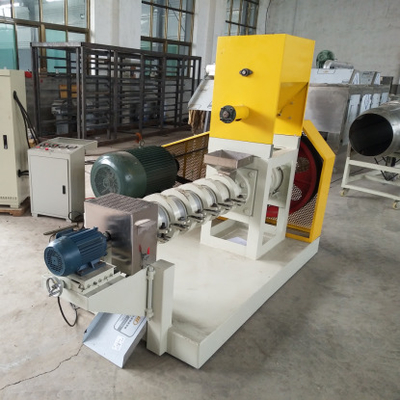

Detailed pictures of floating fish feed pellet machine

Our fish feed extruder has a wide range of applications and adapts to various production processes. The spiral is a sleeve type single head and a double head can be changed; the extrusion screw configuration can be adjusted according to the requirements of different formulas to adapt to the expansion processing of a variety of different feed products.
We provide technical formula for making floating fish feed pellets after placing order.
Specification
Model
DGP-40
Output rate （t/h）
0.04-0.05
Main engine power(kw)
5.5kw(220v)
Screw diameter(mm)
40
Product Size(m)
1.36*1.60*0.85m
Weight(kg)
350kg
Model
DGP60-B
Output rate （t/h）
0.12-0.15
Main engine power(kw)
15
Screw diameter(mm)
60
Product Size(m)
1.36*1.67*0.85m
Weight(kg)
450kg
Model
DGP70-B
Output rate （t/h）
0.20-0.25
Main engine power(kw)
18.5
Screw diameter(mm)
70
Product Size(m)
1.36*1.67*0.85m
Weight(kg)
490kg
Model
DGP100-B
Output rate （t/h）
0.4-0.5
Main engine power(kw)
30/37
Screw diameter(mm)
90
Product Size(m)
1.8*2.6*1.15m
Weight(kg)
800kg
Model
DGP135-B
Output rate （t/h）
0.75-0.8
Main engine power(kw)
75
Screw diameter(mm)
133
Product Size(m)
2.2*2.8*1.2m
Weight(kg)
950kg
Model
DGP160
Output rate （t/h）
1.0-1.2
Main engine power(kw)
90
Screw diameter(mm)
160
Product Size(m)
2.3*3.0*1.2m
Weight(kg)
1200kg
Model
DGP200
Output rate （t/h）
1.8-2.0
Main engine power(kw)
110
Screw diameter(mm)
160
Product Size(m)
2.4*3.2*1.4m
Weight(kg)
1450kg
Certifications
Customer Visit
Company Profile
FAQ
1, What international certifications we have?

---Our company has passed ISO 9001-2008 quality certification .SGS quality certification CE safety and quality certification of EU.

2, How can we guarantee the quality of machines?

---Our company promised that the material thickness of our main equipment is greater than the feed machinery industry standard 2mm. You can pick up the caliper and calculator to weigh and test. About equipment accessories, crusher adopts NSK bearings:pellet machine adopts the Swiss SKF bearing: equipment adopts Siemens motor.

3, How about our export power?

---We are a factory specialized in the research and development of feed machinery, there are 23 year experience, the machines have been exported to Algeria, Russia. Botswana, Benin and so on.

4, Are you a trading company or a manufacturer?

---We are a manufacturer, which has almost 30 years of experience in this industry.

5, Will you send engineers to install the plant?

---Yes, but at an extra cost payable by the customer. Or you can get local contractors to do.

6,What is our products and market positioning?

---Our company won’t use the low price to win the market. We mainly produce middle and high-end product to conquer the customers relying our products and service.

7,What service we can supply?

---In pre-sales we provide users with comprehensive technical support. We provide comprehensive customer training, including in charge of the procedures, operating procedures, maintenance procedures, equipment, general maintenance, equipment, long-term hazard assessment knowledge and so on. Before the users buy our equipment, they can come to our company to accept a series of training. After the examination for equipment operation personnel, service can guide the user through the remote control.
