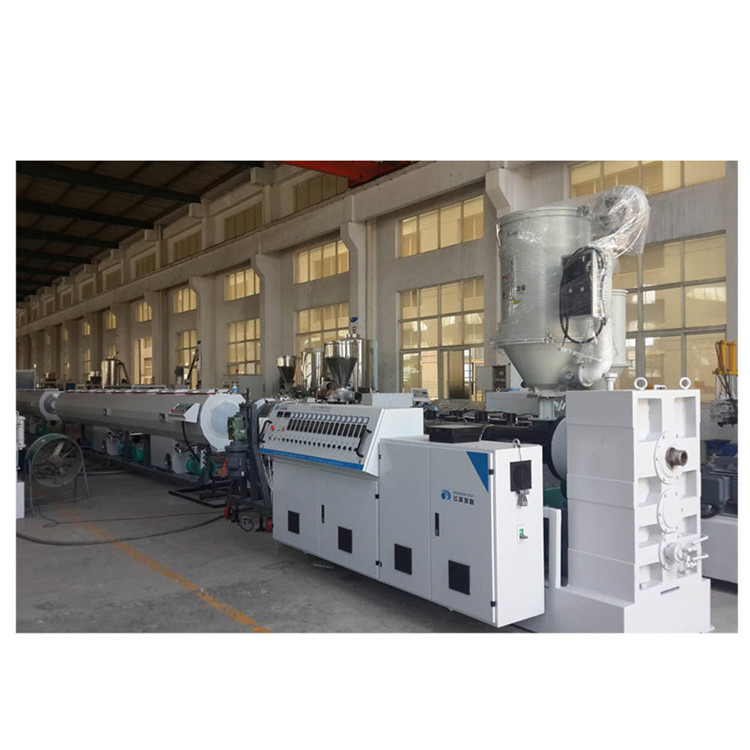

This PVC pipe production line is widely used for producing PVC water supply pipe, drainage pipe and high voltage cable protection pipe. With CPVC pipe mold, it could also produce CPVC pipe. It is consist of SJSZ series extruder, mold, vacuum tank,spraying cooling tank, haul-off,cutting machine, stacker, and can produce PVC pipe from mixed powder directly.
The production line uses special designed screw and mould, which makes it easy forming, even plasticization, high capacity stable running and easy operation
| Extruder | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Max. Diameter( MM ) | Φ75 | Φ200 | Φ315 | Φ630 |
| Motor power (KW) | 18.5 | 37 | 55 | 90 |
| Drawing machine (M/Min) | 0.5-10 | 0.5-8 | 0.5-6 | 0.5-4 |
| Total length(M) | 20 | 25 | 28 | 32 |
| Output ( Kg/H ) | 80-120 | 180-250 | 280-350 | 500-600 |
Good design high performance upvc pvc electric conduit pipe manufacturing making machine
FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.
Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
