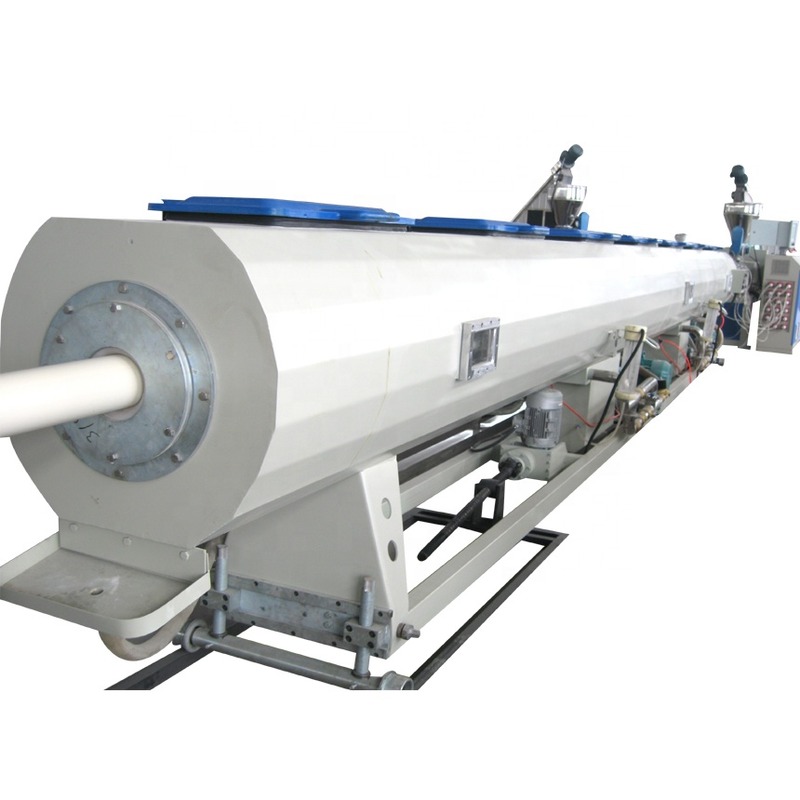

PIPE PVC Coated Electrical Water Pipe Pipe Making Machine

1.0 Sets
MOQ
$22,000.00(1 - 1 Sets) $20,000.00(>=2 Sets)
Price
PIPE PVC Coated Electrical Water Pipe Pipe Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: PIPE
Plastic Processed: PVC
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 65
Screw L/D Ratio: 22:1
Screw Speed (rpm): 39 Rpm
Showroom Location: Turkey, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, Kenya, Argentina, Colombia, Sri Lanka, Bangladesh, Malaysia
Place Of Origin: Shandong, China
Brand Name: TENGHAI
Voltage: 220V/380V/440V
Dimension(L*W*H): 25*2*3m
Power (kW): 100
Weight: 10-20T
Warranty: 1 Years
Key Selling Points: Multifunctional
Applicable Industries: Manufacturing Plant
Marketing Type: New Product 2020
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Gearbox, Screw
Name: PVC Coated Water Pipe Electrical Pipe Making Machine
Motor: SIEMENS Brand
Inverter: ABB Brand
Temperature Control: Ormon Brand
Contactor: SIEMENS Brand Or Schneider Brand
PLC: SIEMENS Brand
Raw Material Of Pipe: PVC Powder
Usage: Produce PVC Pipes
Color: According To Customers' Require
Other Name: PVC Coated Water Pipe Electrical Pipe Making Machine
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile,
Certification: CE
Basic Infomation
Place of Origin: Shandong, China
Brand Name: TENGHAI
Certification: CE
Payment & Shipping Terms
Packaging Details: PVC Coated Water Pipe Electrical Pipe Making Machine: 1.Mould package:Plywood package; 2.Outside package:Stretch film; 3.Loading container: 1X40GP.
Supply Ability: 20 Set/Sets per Month
Product Description
Products Description

PVC Coated Water Pipe Electrical Pipe Making Machine

We are very professional in producing the PVC pipe machines. We have stock in our factory, you can come to visit at any time.
According to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many models of special twin screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize PVC powder and extrude pipes.
Model
Diameter of pipe
Output
Power of main motor
SJSZ51/105
16-40mm
Double pipe
150kg/h
22kw
SJSZ65/132
50-200mm
250kg/h
37kw
SJSZ80/156
250-400mm
450kg/h
55kw
SJSZ92/188
450-630mm
800kg/h
110kw
SJSZ110/220
710-1000mm
1200kg/h
160kw
Products made by our machines
The raw material of PVC pipes is a mixture of the following materials.
Raw Material
Percentage
PVC resin powder
65%-90%
Calcium powder
0-26%
CPE
4%-6%
Compound stabilizer, Titanium dioxide,Stearic acid, Paraffin, PE wax, etc.
5%
Details Images
PVC Coated Water Pipe Electrical Pipe Making Machine consists of the following seven parts:
No.
Name
1
Conical twin screw extruder (with automatic feeding machine)
2
Mould
3
Vacuum calibrating and water cooling tank
4
Haul-off machine
5
Cutting machine
6
Bracket
7
Belling machine (optional)
1. Conical twin screw extruder (with automatic feeding machine)
(1) Motor: Siemens brand
(2) Inverter: ABB brand
(3) Contactor: Siemens brand
(4) Temperature controller: Omron brand
(5) PLC: Siemens brand
(6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.
2. Mould
The internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special
sizing sleeve, the product production speed is hight and the surface of the pipe is good.
(1) Extrusion mould material: 40Cr.
(2) Calibration mould material: Wearable tin bronze ZQSn5-2-5.
(3) Size: Customized
3. Vacuum calibrating and water cooling tank
It can calibrate and cool the PVC pipe from the mould.
(1) Vacuum pump power: 2.2/3/4/5.5 kw
(2) Water pump power: 4/5.5/7.5/11kw
(3)Material of tank: Stainless steel
(4) Length: 6/8/10 m
4. Haul-off machine
(1) Haul-off method: By belts and caterpillars tracks.
(2) Haul-off speed: 1-20 m/min.
(3) Adopt ABB inverter.
(4) Pressing method: Pneumatic pressing.
(5) Effective clamping length:1200-2800mm.
5. Cutting machine
The special cutting machine for PVC pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the
trouble of frequently changing clamping device.
(1) Type: Knife cutting machine and Planetary cutting machine.
(2) Cutting power: 2.2/3/4/6.9kw
(3) PLC control system, using meter counter or sensor switch for the setting of desired length.
6. Bracket (for straight pipe)
It is used to hold pipes and can unload pipes automatically.
(1) Length: 6m,12 m
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
7. Belling machine (optional)
Belling machine can expand one end of the PVC pipe into the specified shape.

You just tell me the diameter of the pipe you want, let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied.
(You can come to our factory to inspect the running production line.)
3. After-sales service:
(1) Free Spare Parts;
(2) Field installation and commissioning;
(3) Field training your workers;
(4) Field maintenance and repair service ;
(5) Video/Online technical support.
4.Turnkey project service:
(1) Complete production line;
(2) Drawing for factory layout and other information for helping customer to build the factory;
(3) Electric cabinet, water pump, air compressor, etc. that will be used in the new factory;
(4) Raw material;
(5) After warranty service.
Reviews by customers
Certifications
FAQ
1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory. 3.Delivery time:
30 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C（at sight).
