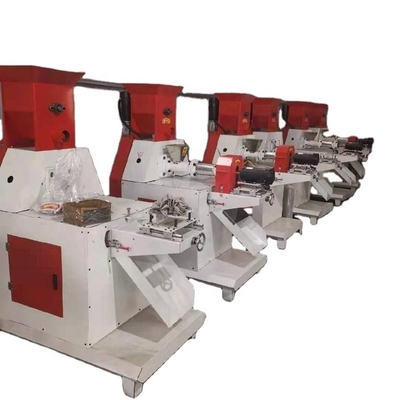

Item | 2021 hot sale high quality small mini pet dog cat food extruder machine |
Application | Producing floating fish feed pellet for Catfish, Tilapia as well as other species. Also suitbale for making food for PET, such as dog, cat...etc. |
Extrusion Type | Dry type, no need to inject hot steam during the extrusion process. |
Transmission style | Belt driven, stable & smoothly running. |
Floating Rate | 99% |
Feed Floating Time | More than 12 hours. |
Pellet Feed Shape | Different shape for choice. Can be customized. |
Advantage 1 | Adopt Copper wire made Motor, strong quality |
Advantage 2 | Adopt NSK bearing & Germany made oil seal to ensure the long service time. |
Advantage 3 | Feeding device under frequency control, speed is adjustable. |
Advantage 4 | Cutting device under frequency control, pellet length is adjustable. |
Advantage 5 | Electric control cabinet adopt famous brand components Chint, ensure nice quality. |
Advantage 6 | The screw adopt high quality material imported from Germany. Fabricated in CNC center, which will ensure the high accuracy and good quality. |
Advantage 7 | The pellet die is made of strong material imported from Germany, ensure the lifetime. |
Model | Main Power | Feeding Power | Cutting Power | Capacity | G.W | Overall Size(mm) |
40 | 7.5KW | 0.4KW | 0.4KW | 40-50KG/HR | 350KGS | 1300*1100*1200 |
50 | 11KW | 0.4KW | 0.4KW | 80-100KG/HR | 370KGS | 1400*1100*1200 |
60 | 15KW | 0.4KW | 0.4KW | 120-150KG/HR | 400KGS | 1400*1100*1200 |
70 | 18.5KW | 0.4KW | 0.4KW | 150-200KG/HR | 450KGS | 1500*1400*1300 |
80 | 22KW | 0.4KW | 0.4KW | 200-250KG/HR | 510KGS | 1500*1500*1300mm |
90 | 37KW | 0.6KW | 0.6KW | 250-300KG/HR | 1500KGS | 1800*1700*1500mm |
1 | Free charge for the pellet production line design. |
2 | Free charge for your existing plant UPGRADE consult. |
3 | Trouble shooting service for your existing plant. |
4 | Free charge for project foundation-preparation drawing. |
5 | On-Site Professional Installation guide. |
6 | Free technical service support for after sale. |
7 | Pellet Buy-Back upon request from Chinese client. |
8 | Free charge of procurement service for other goods upon needs. |
Name | Transcend Industrial Co.,Ltd. |
Core value | Be Reliable, Be Responsible |
Year Of establishment | 2003 |
Experience in the pellet machinery industry | 25 years, since the year of stepping into the business of pellet machinery. |
Production Base Number | 4 |
Location | Liyang, Jiangsu, China / Zhengzhou, Henan, China/ Shandong, China |
Occupation | 7000 square meters/Liyang production base. |
Staff Number | Around 60 in Liyang production base. |
Main Product | Machinery for wood pellet & animal feed, Machinery for agriculture & woodworking, machinery for food & chemical, spare parts. |
Patent Number | 25 |
Certificate | ISO, CE |
