Home /Products/Rotary Dryer Machine/Medicine Processing Biomass Wood Pellet Making Line Used Sawdust Drier Drying Process

Medicine Processing Biomass Wood Pellet Making Line Used Sawdust Drier Drying Process

1 Set
MOQ
Medicine Processing Biomass Wood Pellet Making Line Used Sawdust Drier Drying Process
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Drum Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing, Biomass Energy Pellet Production Line
Condition: New
Place Of Origin: Shandong, China
Brand Name: BIOMASS
Voltage: 380V,50HZ,THREE PHASES
Power: 4KW-55KW
Dimension(L*W*H): 1000*10000MM/1500*100000MM/1800*22000MM
Key Selling Points: High Safety Level
Warranty: 1 Year
Weight (KG): 30Tons Diameter 2M With 20M Length
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Advertising Company
Showroom Location: Thailand, Malaysia
After-sales Service Provided: Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Germany, Viet Nam, India, Thailand, Malaysia, South Africa
Certification: CE
Product Name: Wood Chips Dryer
Material: Carbon Steel
Function: Dry Wood Chips And Wood Sawdust
Advantage: Low Consumption High Efficiency
Temperature Range: 250 Degree/+400degree/+900degree
Fuel: Wood Branch/coal/wood Pellets
Basic Infomation
Place of Origin: Shandong, China
Brand Name: BIOMASS
Certification: CE
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 30 Set/Sets per Month
Product Description
Product Description
Rotary Dryer is suitable for drying sawdust, organic material, chemical material and etc. This type rotary dryer has advantage of high drying capacity, stable working performance, low consumption and easy operation. The rotary dryer adopts air inhale device to inhale the hot air from air-heating furnace to the inner of dryer to complete heating change with wet material. According to the different character of material, we use different type lifting plate and Anti-sticking measures. There are multi-angle lifting style lifting plate inside of dryer; during drying, the lifting plate will raising the material evenly, which can ensure the material complete heating change with the hot air enough and also ensure the drying efficiency is good.
Inner introduction
1)Inner design adopts plum blossom plate second drying,keep sure the drying effect.
The moisture more than 50% can dry to below 5% moisture,depend on the requirments to change the rotary drum ruuning speed.
2)All the key frame we use stronger steel,keep sure the machine long lifetime.
3)During the rotary dryer running,the wood chips/wood sawdust  together with hot wind go to the drum.
4)The rotary drum inside install temperature sensing device,it is easy to control the moisture.

  • Working principle

The drying body is composed of cylinder body, ring gear and rolling ring. The drying body is on the tug rolling device and block rolling device supported by front and back rolling ring. It can control axial direction traversing of drying body by adjusting tug rolling device and block rolling device. The driving device drives drying body rotating through the ring gear. Electric motor (frequent) as the power can achieve stepless speed adjusting and meet the demand of different rotating speed. The driving has two forms, left driving and right driving. Method of distinction: look at from the direction of inlet, the driving device that is at the left side of drying body is left driving; the driving device that is at the right side of drying body is right driving.
Detailed Images

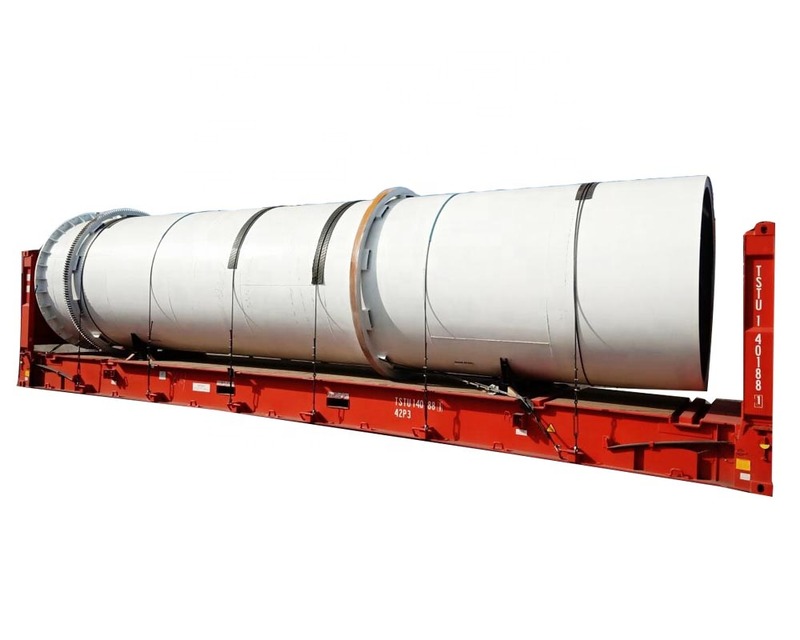

Dryer loading and delivery,wood dryer complete set,rotary drum dryer and hot wind stove
Packing&Shipping
After Sales Service
After sales service
1)Depend on client,online service.
2)Our company also can arrange engineer go to buyer factory guiding installing,operating and train workers
3)The machine also have manual in english.
4)Before loading and delivery the machine,the buyer also can send person fly to our factory to learn the machine details.
5)Normally installing time need 3-5days.
6)We will also supply installing drawing and layout to buyer.

Company Introduction
Jinan Biomass Machinery Equipment Co.,ltd is located in JiNan city,ShanDong province China. professional manufacturer of machine for biomass energy,forest, agriculture,fishery more than 12 years. Main products:Wood chipper,hammer mill,pellet mill,dryer,cooler,packing machine;animal feed processing machinery;fertilizer making machinery.pellet Production complete plant. We have good sales markets in Europe,North America, Africa, East and South Asia and other countries and regions. also have professional engineers and salesmen to serve all of our customs,We always here waiting for an opportunity to serve you,Focus on customer requirements,aim to supply the highest quality machinery and take care of every process from our hands in China.the more you know us,the more you believe in us!
Sincerely want to become your trustworthy business partner!
