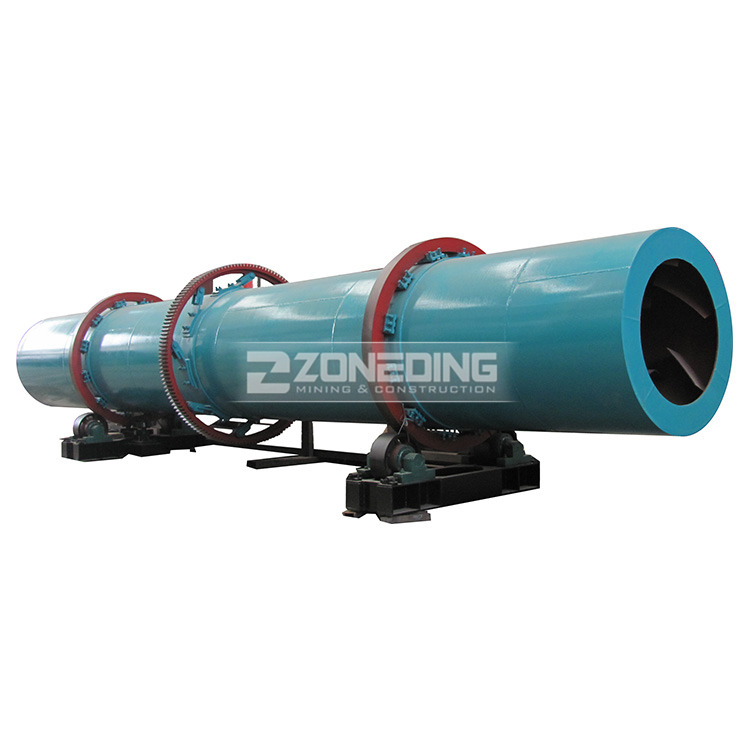

Rotary dryer are widely used for building material, metallurgy, chemical industry, cement plant for dry sand, slag, clay stone, etc. Rotary drum dryer mainly consists of rotary body, raw material feeding plate,driving and supporting device
| Model | Shell diameter (mm) | Shell length (mm) | Slope(°) | Rotary speed(r/m) | Weight(t) | Power (KW) | Volume (m3) |
| Φ0.6×8 | 600 | 8000 | 3-5 | 8 | 5.1 | 5.5 | 2.26 |
| Φ0.8×10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 5.5 | 5.02 |
| Φ1.0×10 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 7.5 | 7.85 |
| Φ1.2×12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 11 | 13.3 |
| Φ1.5×12 | 1500 | 12000 | 3-5 | 5.4 | 19 | 18.5 | 21.2 |
| Φ1.8×12 | 1800 | 12000 | 3-5 | 5 | 25 | 18.5 | 30.52 |
| Φ2.2×16 | 2200 | 16000 | 3-5 | 3.2 | 41 | 30 | 60.8 |
| Φ2.4×18 | 2400 | 18000 | 3-5 | 3 | 51 | 30 | 81.43 |
| Φ2.8×24 | 2800 | 24000 | 3-5 | 2-5 | 97 | 75 | 147.8 |
| Φ3.0×26 | 3000 | 26000 | 3-5 | 2-5 | 110 | 90 | 183.7 |
Rotary Drying production line was installed in Russia in 2017
Capacity: 15 t/h Raw materail: sand,sludge
Main Equipment: Vibrating Feeder, Jaw Crusher, Impact Crusher, Vibrating Screen, Belt Conveyor
Rotary Drying Plant in Philippines
FAQ: Free Price
1.How to choose you dry equipment?
A: At first, please inform us what kind of material you need to dry.
Second, you should inform us how much output you need per hour.
Third, what kind of heat source you have(Electric heating/oil furnace/gas furnace/coal furnace/stream)
2.Can you provide plant layout?
A: Yes, we can provide. Our clients should provide the CAD drawing and pictures of the scene. According to the CAD drawing, we can design the reasonable layout.
