Factory Full Automatic Brass Injection Molding Machine

1.0 Sets
MOQ
Factory Full Automatic Brass Injection Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China
Condition: New
Machine Type: Cold Chamber Die Casting Machine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Pump
Brand Name: ZHENLI
Voltage: 220V/380V/415V/460
Power: 11kw/19kw
Dimension(L*W*H): 4100*1320*2550mm
Warranty: 12months
Key Selling Points: Competitive Price
Showroom Location: Egypt, Canada, Turkey, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Argentina, Colombia, Algeria, Bangladesh, Ukraine, Uzbekistan, Japan, Malaysia
Applicable Industries: Manufacturing Plant
Weight (KG): 6500
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Machine Color: Blue Bases,yellow Door,white Computer
Machine Material: Cast Iron
Machine Type: Factory,manufacturer
Machine Valves: Yuken,Japan
Machine Electric Parts: Schneider
Certification: CE-RoHS
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ZHENLI
Certification: CE-RoHS
Payment & Shipping Terms
Supply Ability: 50 Set/Sets per Month
Product Description

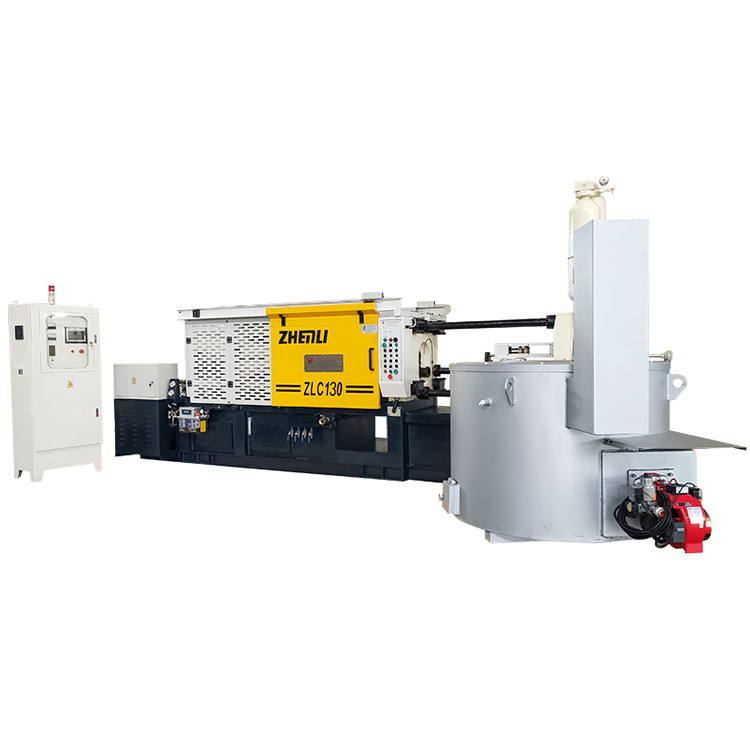

Full automatic brass injection molding machine
Products Description
ITEMS
UNIT
ZLC-130T
Locking Force
kN
1350
Die Open Stroke
mm
350
Ejector Force
kN
70
Ejector Stroke
mm
75
Die Height(Min.-Max.)
mm
200-500
Die Platen Size(HXV)
mm
630×680
Space Between Tie Bars
mm
410×410
Shot Position
mm
0,-100
Shot Strock
mm
340
Casting Force(intensify)
kN
180
Plunger Diameter
mm
40,50,60
Injection Weight
kg
0.7, 1.15, 1.65
Casting Pressure
MPa
141, 90, 62
Casting Area
cm²
90, 140, 205
Casting Area Max
cm²
325
Chamber Flange Diameter
mm
110
Chamber Flange Protrusion
mm
10
Plunger Penetration
mm
125
Main Pump Driving Motor
kW
11/19
Working Pressure
MPa
14
Oil Tank Capacity
L
480
Machine Dimensions (L×W×H)
mm
4100×1320×2550
Referential Machuine Weight For Uplifting
T
6.5
Details Images
Company Profile
Certificate
Sales and Service
Transport & Payment
FAQ
Q: Is your company a trading corporation or manufacturer?
A: Our company is a die casting machine manufacturer with more than 25-year experience.

Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.

Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.

Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.

Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
