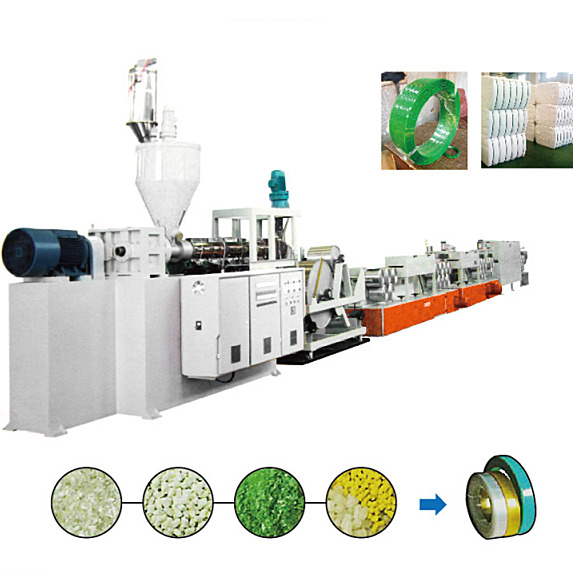

1.Main technical data of pp packing belt manufacturing machine
|
Model and parameters |
JZX/50-1 |
JZX/65-2 |
JZX/90-2 |
|
Packing tape number |
1 |
2 |
2 |
|
Packing specification |
9.5~19mm |
9.5~19mm |
9.5~19mm |
|
The highest yield of about |
80kg/h |
120kg/h |
150kg/h |
|
Cooling water flow |
0.6m³/h |
0.6m³/h |
0.6m³/h |
|
Compressed air consumption |
0.25m³/min |
0.25m³/min |
0.25m³/min |
|
Compressed air pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
|
The total installed power equipment |
113KW |
178KW |
215KW |
|
The whole line length |
About25m |
About 28m |
About40m |
2.Machine list of plastic packing belt machine
|
No |
Name |
Qty. |
|
1 |
Vacuum loader |
1set |
|
2 |
CSG2000 dehumidify dryer |
1set |
|
3 |
S90/33 single screw extruder(can be adjusted according to client's demand) |
1set |
|
4 |
Hydraulic screen exchanger |
1set |
|
5 |
Melt pump |
1set |
|
6 |
Mould |
1set |
|
7 |
Water tank cooling system |
1set |
|
8 |
Haul-off machine |
1set |
|
9 |
Heating oven |
1set |
|
10 |
Preheating machine |
1set |
|
11 |
Drawing machine |
1set |
|
12 |
Embossing machine |
1set |
|
13 |
Hot forming machine |
1set |
|
14 |
Haul-off |
1set |
|
15 |
Winder (double position) |
2sets |
|
16 |
Chiller |
1set |
|
17 |
Mould temperature controller |
2sets |
3.Related pictures of pp packing belt production line
Water tank cooling system for pet strap band making machine pet strap band extrusion line
Haul-off for pet strap band making machine pet strap band extrusion line
Winder for pet strap band making machine pet strap band extrusion line
Fishned product for pet strap band making machine pet strap band extrusion line
