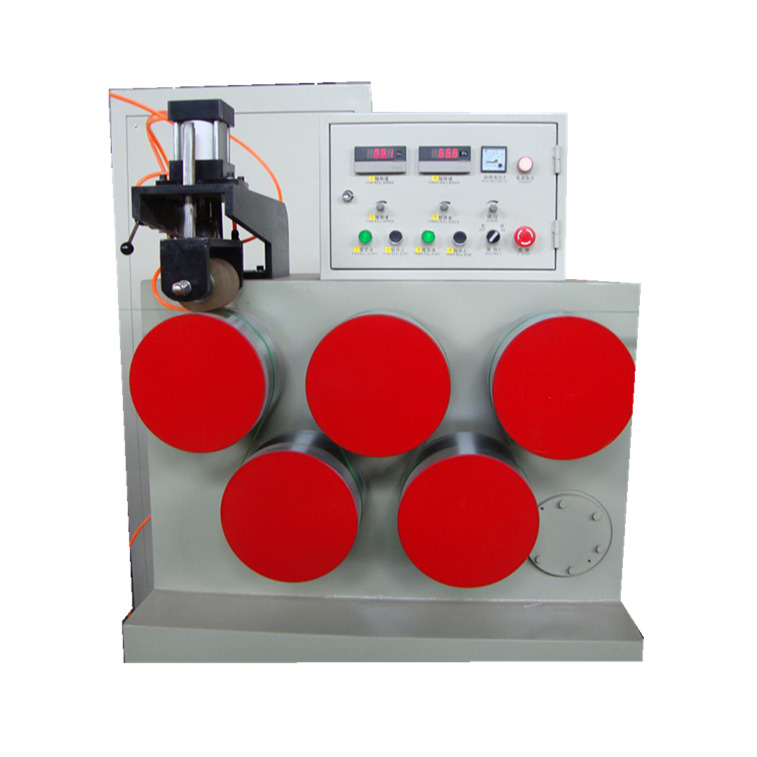

used pet strapping band production line,pp strapping band making machine,pet packing straps extrusion machine
Raw material: PET recycled flakes or PET original flakes
Products model:
Width: 9mm-25mm
Thickness: 0.5mm-1.2mm
Capacity: 1T-2T/Day(24 hours)
Total power: 120kw-160kw (380V, 50Hz)
pet strap band machine configuration reference
No | Name | Qty. |
1 | Vacuum loader | 1set |
2 | CSG2000 dehumidify dryer | 1set |
3 | S90/33 single screw extruder(can be adjusted according to client's demand) | 1set |
4 | Hydraulic screen exchanger | 1set |
5 | Melt pump | 1set |
6 | Mould | 1set |
7 | Water tank cooling system | 1set |
8 | Haul-off machine | 1set |
9 | Heating oven | 1set |
10 | Preheating machine | 1set |
11 | Drawing machine | 1set |
12 | Embossing machine | 1set |
13 | Hot forming machine | 1set |
14 | Haul-off | 1set |
15 | Winder (double position) | 2sets |
16 | Chiller | 1set |
17 | Mould temperature controller | 2sets |
Features of pet strap band extrusion line / pet strap band machine :
Adopts advanced CSW-800 comby dehumidify dryer system. It make sure the material humidity at 80PPM at 50PPM dew point. Meanwhile, it compact material and increase the viscidity.
Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.
Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
Produce different model product at one die and mould. Adopts hydraulic screen exchanger without material leak.
Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product's stretch intensity.
The strap after formed will be warm and anneal treated to wipe off the part stress remained after stretch. It makes molecule tropism be steady to avoid strap distortion caused by storage.
The winder adopts double work position and auto-meter. It is easy operation and convenient coil change.
Centralized electrical control, PLC self-correcting control. Easy operation.
Any question about pet strap production line / pet strap band machine ,please feel free to contact us ,
we are pleased to recommend you suitable product according to your practical demand!
