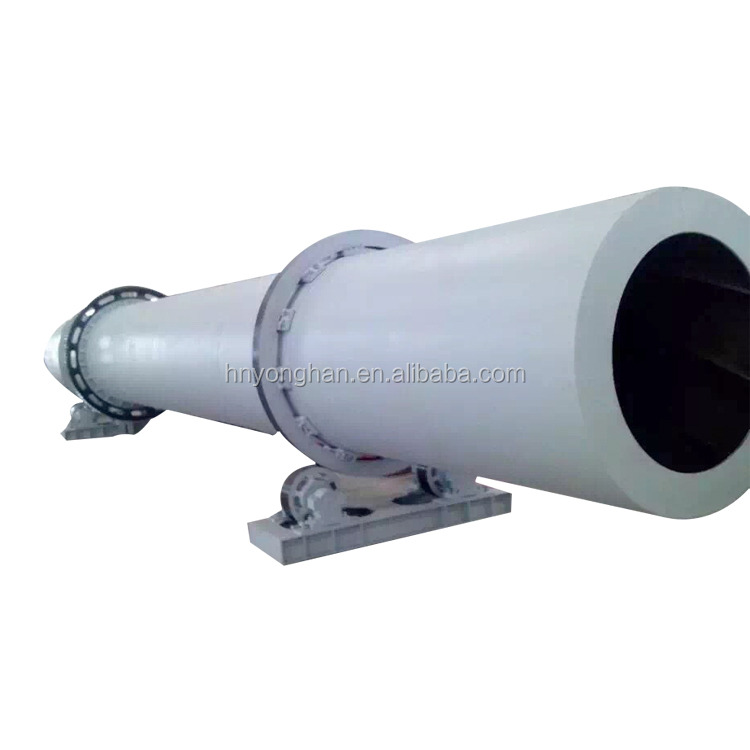

Medicine Processing Organic Fertilizer Rotary Drum Dryer

1 Set
MOQ
$16,500.00(1 - 1 Sets) $12,600.00(>=2 Sets)
Price
Medicine Processing Organic Fertilizer Rotary Drum Dryer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drying Equipment
Application: Medicine Processing, Chemicals Processing
Condition: New
Place Of Origin: Henan, China
Brand Name: Yonghan
Voltage: 380V/50HZ Or Customized
Power: 15kw
Dimension(L*W*H): 1500*15000
Key Selling Points: High Safety Level
Warranty: 1 Year
Weight (KG): 14000
Applicable Industries: Energy & Mining
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Gearbox
After-sales Service Provided: Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO
Product Name: Rotary Dryer
Spare Parts Supply: Long-term Supply
Usage: To Dry The Moisture In Materials.
Max-input Gas (℃): 700
Quality: High Leavel
Function: Mining Crusher Equipment
Weight: 19.2t
Basic Infomation
Place of Origin: Henan, China
Brand Name: Yonghan
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: nude, loadded by container ,
Supply Ability: 5 Set/Sets per Month
Product Description

Product Description

Production description of Organic Fertilizer Rotary Drum Dryer

Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.

Technical parameter

Model(m)
(Shell diameter*shell length)
Shell cubage
(m³)
Capacity
(t/h)
Gradient
(°)
Highest inlet air
temperature
(℃)
Main motor
power
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5
700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.4~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135
Note: The above product configuration is not necessarily the factory standard configuration, please consult us when you purchase, we wholeheartedly for your service, for your custom ~.

Working principle

Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.

Company Information

Product Application

Packaging & Shipping

Certifications

Why choose us?

  • We have 15 years experiences in design and manufacture of mine equipment.

  • We have a professional aftersales service team to provide customers with technical services.

  • Our products sell well in many countries, such as Sudan, Kenya, Zimbabwe, India, South Africa and so on.

  • We have enjoyed a good reputation with our customers.

FAQ

1).MOQ require?

Our moq is 1 set.(If you need the spare parts,it is also ok).

2).Payment method?

Usually,we accept T/T,Western Union and others

3).How to guarantee the quality?

If any machine quality problems, we accept return cargos.

Our warrantity is 18 months, promise your 0 risks purchasing

4).Packing and Delivery

Standard export wooden case to protect the machine from demage.

If we have no stock, we will delivery within 7-20 working days.

5). How to place an order?
A:Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm

6).Is it possible to visit your factory?

A:Sure,welcome to visit our factory and we will pick you up at the airport or railway station and show you around our factory.
