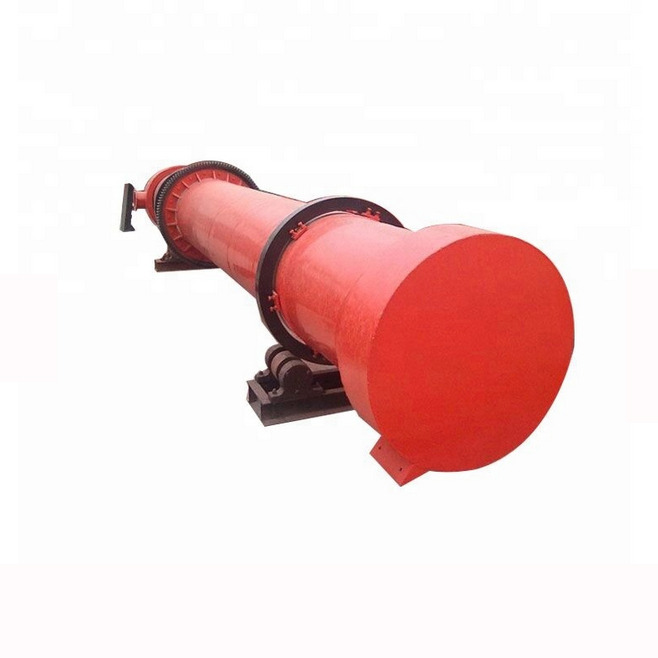

Solid waste dryer is widely applicable to straw press block fuel, charcoal machinery, sawdust pellet fuel, sawdust press block, farming and animal husbandry engineering etc. industry.
When drying sawdust, biomass, wood shavings, rice bran, wood chips, coconut residue and other materials, it is necessary to consider a very important issue, that is, the material in the drying process to avoid burning.
The solid waste dryer uses multi-tube indirect drying, and the materials are in indirect contact with hot air, which can effectively solve the problem of material burning.
Inside of the solid waste dryer, there are many tubes. During drying process, the hot air will enter into tube-
internal by draught fan, while the materials exist tube-external, so that the materials can be dried indirectly, there is no pollution and no color change, also a fire that caused by too high temperature will be avoided successfully.
stove of solid waste dryer
It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall. Can use coal, wood, diesel, etc. as fuel
Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.
Drying section of solid waste dryer
1. Multi-tube indirect drying, which can evenly dry materials, and avoid burning or contaminating materials.
2. The lifting can lift the material and push it forward, so that the material can be uniformly dried without clumping. |
Wood chips, sawdust, vinasse, residues, etc can be dried
1. New technology of indirect-drying structure, the working process is very safe and health.
2. solid waste dryer equipped with biofuels stove, has a high environmental protection effect.
3. High thermal efficiency, the thermal efficiency can reach 60%.
4. The effect of drying is very good.
5. High output and low cost, reasonable design.
6. solid waste dryer moth-proofing, and it prevent mildew, has a long shelf life.
7. solid waste dryer have a high degree of automation, easy to operate, save manpower.
| Model(mm) | HKB-1060 | HKB-1290 | HKB-1590 | HKB-2090 | ||
Dimension(mm) | 8500×1600×2300 | 11500×1800×2600 | 11500×2100×2950 | 11500×2700×3300 | ||
| Output(t/h) | 0.5-1 | 2-5 | 5-10 | 10-20 | ||
| Power(kw) | 12 | 18.7 | 25 | 30 | ||
| Weight(t) | 6 | 10 | 14 | 20 | ||
| Speed(r/min) | 3-5 | |||||
| Reduction of moisture(%) | 40-50 | |||||
| Dryness of finished materials(%) | 5-10 | |||||
| Heating medium | Hot clean air | |||||
| Hot air temp(℃) | <120 | |||||
1.Factory price and perfect after-sales service.
2.Alibaba Assessed Gold Supplier.
3.Detail Design Thoughtful
4.100% QC inspection Before Shipping.
5.Cases in many countries.
6.Solve the problem within 72 hours
Henan Haokebang Machinery Equipment Co., Ltd. is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, construction waste processing production line, preparation equipment and other products 15 years.
Our services:
1).One package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators.
2).One year warranty.
3).Long-term supply of components.
A: We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.
2. Question: How to prove the strength of your company ?
A: We have accumulated nearly two decades of experience in production and sales,which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.
3. Question: What is the heat source of your stove?
A: Coal, wood, rice husk, or diesel, or natural gas. And our company is developing the gas stove
