Application:
This PP PET strap band/ packing belt production line can produce different width and thickness pp pet strap according to the clients' requirement. The raw material can be 100% recycled material , which can reduce the product cost and get a good profit. The PP belt is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature resistant, easy use. It is mainly suitable for packaging for various trades. The use of the production is convenient and it can adopt common steel fastening for connnection. It also id suitable for various kinds of hand-operated of table packing machine and large quto-packing machines of enterprises.

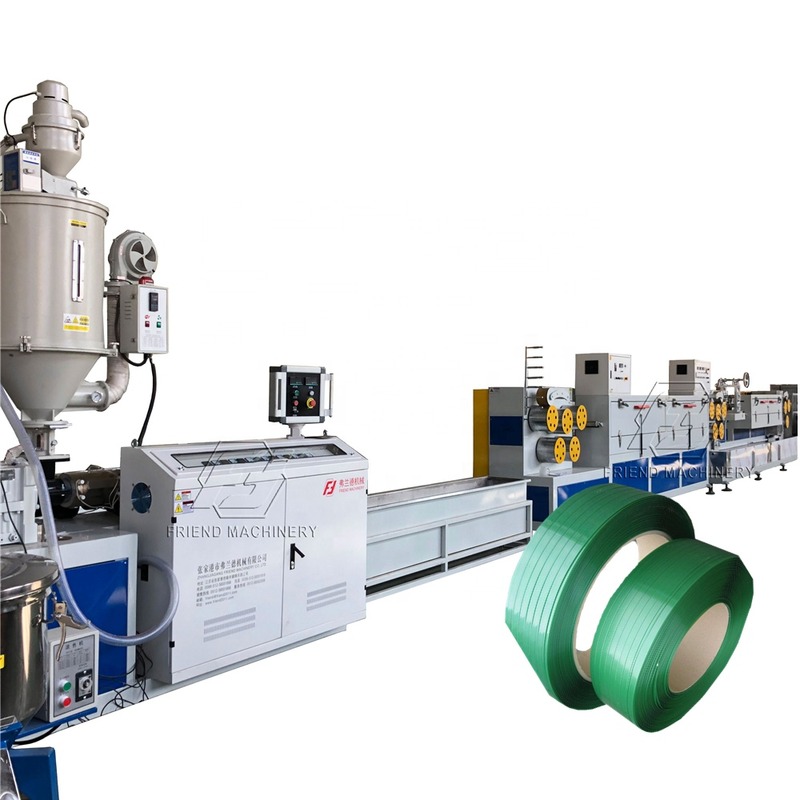

Plastic PET/PP packing strap extruder production line Packing belt making machine
Raw material: Waste PE/PET flakes or granule.
Number of strap: 1,2,4,6,
Width: 5mm-22mm,
Thickness: 0.5mm-1.5mm,
Standard: 12×0.8mm, 12×1mm, 13×1mm.
machine configuration
Advantages:
. process 100% recycled PET bottle flakes.
. even plasticization and stable extrusio with PLC automatic control for the whole line.
. as per different requirements, changing a coating materials for making strao has better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
. Melt filter with two pistons with air venting design amd back flushing.
. Production line just need 2-3 workers ,suit to 24 hours moving per day.
. Finished product: width: 5-25 mm, thickness: 0.5-1.5mm.
No. | Item | Qty |
1 | Vacuum autoloader | 1 set |
2 | Dryness system(For PET) | 1 set |
3 | Single screw extruder | 1 set |
4 | Die head | 1 set |
5 | Water trough calibration system | 1 set |
6 | First pre-heating machine | 1 set |
7 | Short wave infrared ray heating oven | 1 set |
8 | First tensile pre-heating machine | 1 set |
9 | Short wave infrared ray heating oven | 1 set |
10 | Second tensile machine | 1 set |
11 | Embossing machine | 1 set |
12 | Three rollers cooling machine | 1 set |
13 | Tight hot calibration machine | 1 set |
14 | Third haul-off | 1 set |
15 | Double winder | 2pcs |
We not only provide machines but also offer technical support and market evaluate.
We will provide all the machines for the complete production line according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
Except for the one year warranty, we will provide after-sales service for all the time.
For long-term cooperation, we always provide good quality, good price and offer good service to customers.
* online Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* whole manufacturing process traceable
* Field installation, commissioning , operation training.
* Engineers available to service machinery overseas.
* Free spare parts
