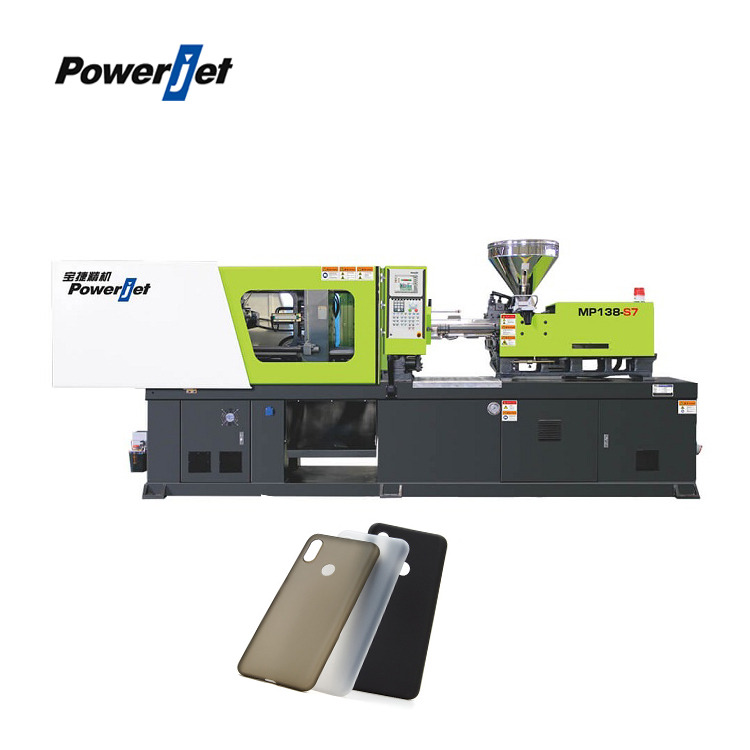

PHONE CASE INJECTION MOLDING MACHINE
Powerjet MP series Phone Case Injection Molding Machine specialized for mobile phone cases and other accessories. Products are mainly manufacturing by PC, Elastomers and other raw materials.MP series focuses on the product features which it’s lightweight, high precision needed and not easy to shape.
Clamping Force – 138(Ton)
Shot Weight(PS) – 88/115(g)
Applications – Phone Cases
FEATURES:
1:Increased 40% of Injection Speed And Pressure – Suitable to manufacturing phone cases.
2:Specialized Screw For PC & TPU – Solve the problems about product become yellow and other issues.
3:SKD Distributor/Ring/Washer – Wear-resistant & Anti-fatigue, greatly reducing the probability of cracking also improving machine lifetime.
4:Hydraulic System Upgrade – More powerful and higher manufacturing efficiency.
5:Strengthened Platen Structure – Reducing the deformation of the platen, resulting in higher precision and provides long-term stable operation.
| DESCRIPTION | UNIT | MP138-S7 | |
| CLAMPING UNIT | Clamping force | KN | 138 |
| Opening stroke | mm | 360 | |
| Max.datlight | mm | 810 | |
| Platen size | mm | 620*620 | |
| Space between bars | mm | 410*410 | |
| Max.mold height | mm | 450 | |
| Min.mold height | mm | 145 | |
| Ejector stroke | mm | 120 | |
| Ejector force | KN | 42 | |
| INJECTION UNIT | Screw diameter | mm | 32 |
| Injection Pressure | MPa | 223 | |
| Shot volume | cm3 | 129 | |
| Screw stroke | mm | 160 | |
| POWER UNIT | Hydraulic system Pressure | MPa | 17.5 |
| Pump motor power | KW | 15 |
Please feel free to consult us whenever you want to know more information. Thanks~
