Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition:
New
Style:
Horizontal
Distance Between Tie Bars(Width)(mm):
770mm
Distance Between Tie Bars(Height)(mm):
770mm
Mold Height(mm):
250 - 780 Mm
Ejector Stroke(mm):
200 Mm
Ejector Force(kN):
110 KN
Theoretical Shot Volume(cm³):
1742 Cm³
Injection Rate (g/s):
440 G/s
Machine Type:
Hydraulic
Injection Weight (g):
1568 G
Screw Diameter (mm):
75 Mm
Screw L/D Ratio:
20
Distance Between Tie Bars:
770*770MM
Weight (KG):
21000

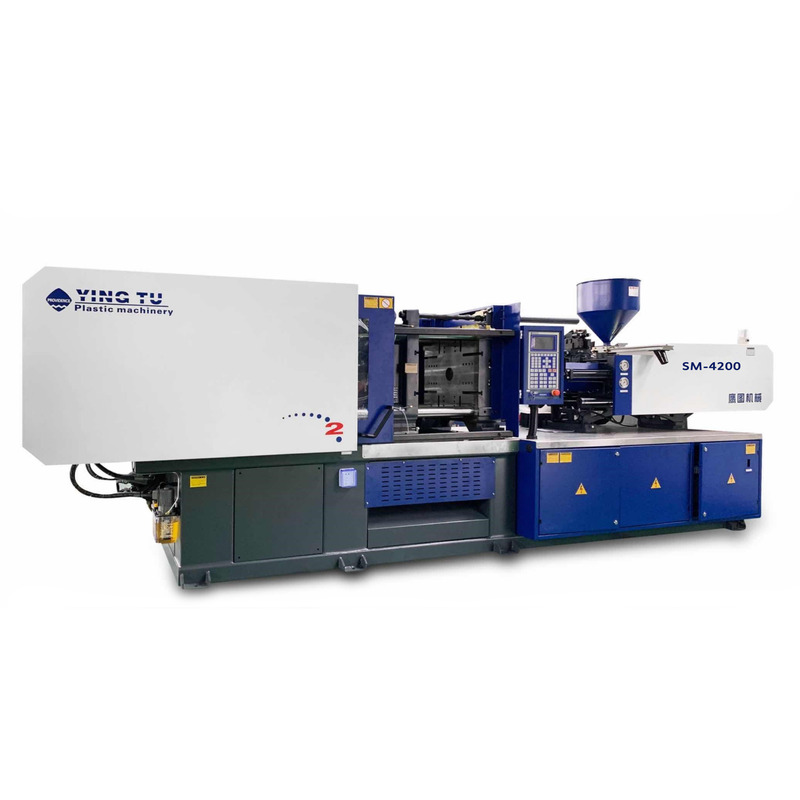

Type:
Injection Molding Machine
Place Of Origin:
Zhejiang, China
Open Stroke(mm):
740 Mm
Model Number:
SM-4200
Brand Name:
HGMB
Power (kW):
45 KW
Warranty:
1 Year
Key Selling Points:
Automatic
Applicable Industries:
Manufacturing Plant
Showroom Location:
China
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Not Available
Warranty Of Core Components:
1 Year
Core Components:
Motor, Pump, PLC
Hydraulic System Pressure:
17.5mpa
Heating Power:
36.5kw
Motor Power:
45kw
Theoretical Weight:
21t
Machine Size:
7.5*1.95*2.4m
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service:
Video Technical Support, Online Support, Spare Parts
Local Service Location:
China
Certification:
CE,ISO9001
