Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition:
New
Style:
Horizontal
Distance Between Tie Bars(Width)(mm):
470mm
Distance Between Tie Bars(Height)(mm):
470mm
Mold Height(mm):
180 - 520 Mm
Ejector Stroke(mm):
135 Mm
Ejector Force(kN):
46 KN
Theoretical Shot Volume(cm³):
362 Cm³
Injection Rate (g/s):
145 G/s
Machine Type:
Hydraulic
Injection Weight (g):
326 G
Screw Diameter (mm):
45 Mm
Screw L/D Ratio:
20
Distance Between Tie Bars:
470*470MM
Weight (KG):
5380
Type:
Injection Molding Machine
Place Of Origin:
Zhejiang, China
Open Stroke(mm):
435 Mm

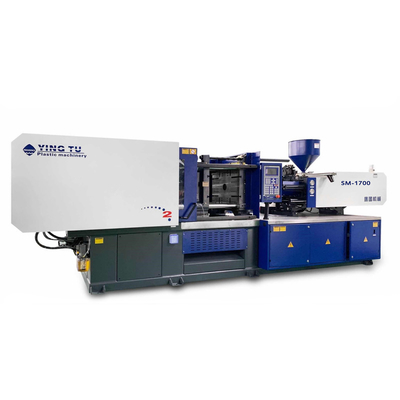

Model Number:
SM-1700
Brand Name:
HGMB
Power (kW):
18.5 KW
Warranty:
1 Year
Key Selling Points:
Automatic
Applicable Industries:
Manufacturing Plant
Showroom Location:
China
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Not Available
Warranty Of Core Components:
1 Year
Core Components:
Motor, Pump, PLC
Hydraulic System Pressure:
17.5mpa
Heating Power:
13.75kw
Motor Power:
18.5kw
Theoretical Weight:
5.38t
Machine Size:
4.93*1.3*1.98m
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service:
Video Technical Support, Online Support, Spare Parts
Local Service Location:
China
Certification:
CE,ISO9001
