Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition:
New
Style:
Horizontal
Distance Between Tie Bars(Width)(mm):
460mm
Distance Between Tie Bars(Height)(mm):
460mm
Plasticizing Capacity(g/s):
24.6
Mold Height(mm):
185 - 490 Mm
Ejector Number:
5
Ejector Stroke(mm):
100 Mm
Ejector Force(kN):
42 KN
Theoretical Shot Volume(cm³):
344 Cm³
Injection Rate (g/s):
160 G/s
Machine Type:
Hydraulic
Injection Weight (g):
313 G
Screw Speed (rpm):
1 - 210 Rpm
Screw Diameter (mm):
45 Mm
Screw L/D Ratio:
21
Distance Between Tie Bars:
460X460mm
Weight (KG):
4000
Type:
Thermoplastics Injection
Place Of Origin:
Guangdong, China
Open Stroke(mm):
446 Mm
Model Number:
GM2-LS160S
Brand Name:
LANSON
Power (kW):
16 KW
Warranty:
1 Year
Key Selling Points:
High Rigidity
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location:
Turkey, United States, Viet Nam, Malaysia
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw
Product Name:

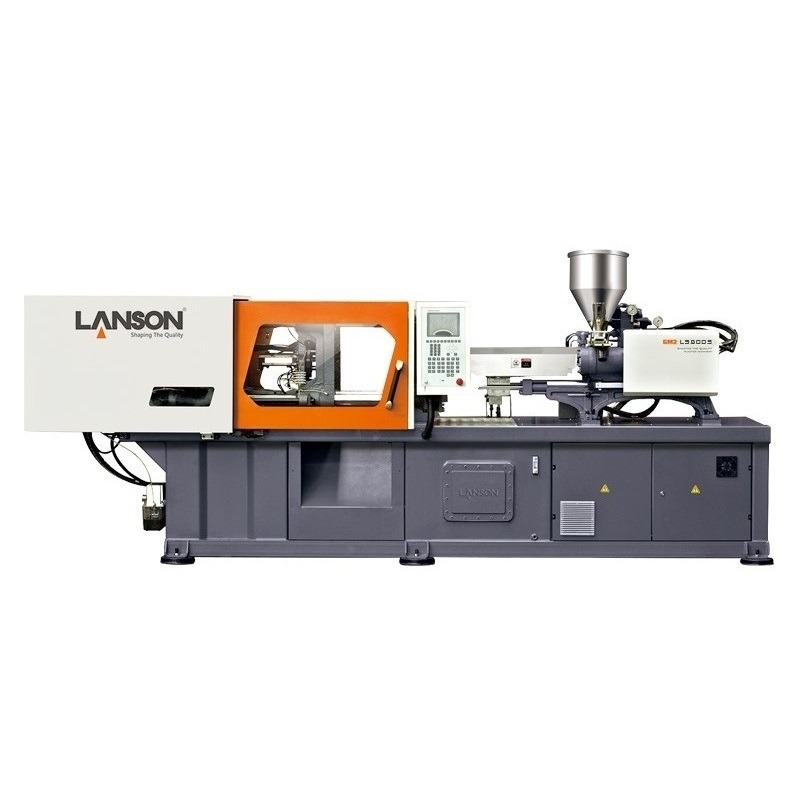

LANSON GM2-LS160S Plastic Injection Moulding Machine
Keyword:
Plastic Injection Moulding Machine 160 Ton
Feature:
High Rigidity, High Strength, Faster Response And Energy Saving
Voltage:
380V/ 50Hz 3P+N+E (alterable)
After-sales Service:
Long Life Technical Service Support On Site Or Online
Prices:
Negotiable
Plastic Type:
Thermoplastic
Automatic:
Yes
Clamping Force (kN):
1600
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
Turkey, United States, Viet Nam, Malaysia
Certification:
CE ISO9001
